Results delivery

Optional: have each member's scan result stored by Visualize and delivered to your backend. Off by default — without it, no measurement ever leaves the member's device.

Consent comes first

A scan result is your member's body data. Enabling delivery is a warranty you make: your app obtains each member's consent to this storage and delivery, and you honor deletion requests. The switch in the portal states exactly that — turning it on is the promise, per your terms with Visualize.

Enable it

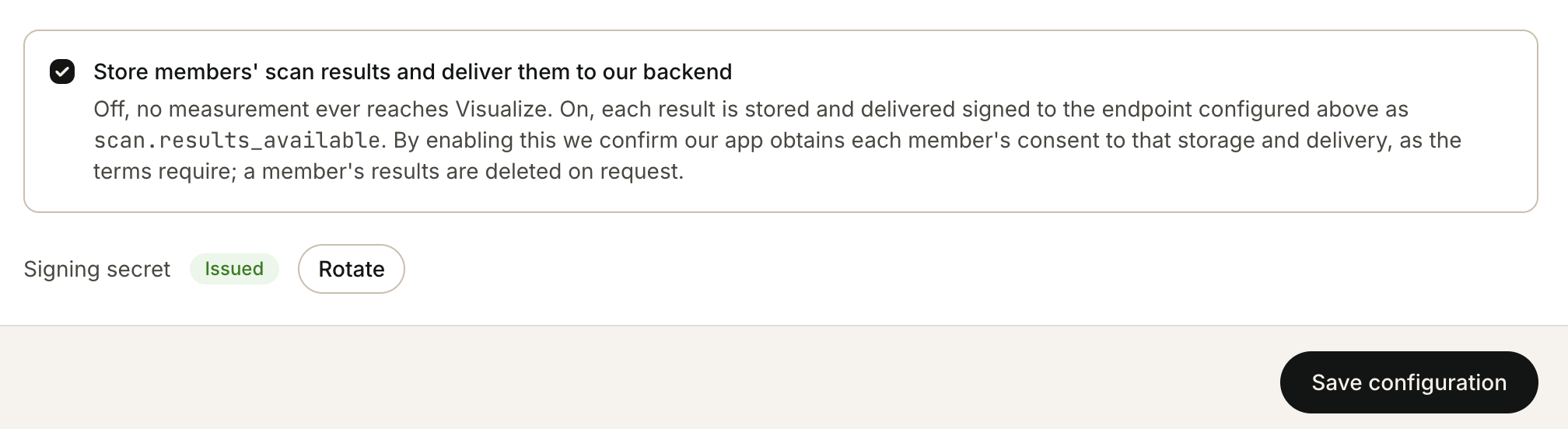

Portal → your app → Configuration → tick "Store members' scan results and deliver them to our backend". You need a webhook URL configured — results arrive as signed webhook deliveries.

The event

After each scan, alongside the usual scan.completed, your endpoint receives scan.results_available with the result exactly as the member's app computed it. Join the two on scan_id. Verification is identical to every other webhook.

{
  "type": "scan.results_available",
  "data": {
    "scan_id": "scan_7f3a...",
    "host_user_ref": "user_842",
    "result": {
      "modelVersion": "2026.09.2",
      "measurements": {
        "bodyFatPercent": 27.9,
        "bmi": 24.6,
        "girths": { "waistCm": 84.2, "hipCm": 98.6 }
      }
    }
  }
}

Deletion

When a member asks you to delete their data, one call removes every stored result and queued delivery for them. Zero deletions is a success — the intent is already true.

curl -X DELETE "https://api.visualizeme.ai/v1/results?host_user_ref=user_842" \
  -H "Authorization: Bearer sk_live_..."

# 200  {"host_user_ref": "user_842", "deleted": 3}
